ETA

High Capacity End Suction Pump

The ETA is our large flow, end suction pump for handling water, oils, and chemicals in process and general industry application.

Talk to a pump expert

+563.263.3410

More

High Capacity End Suction Pump

Designed  as a horizontal foot-mounted unit, that can be electric motor, diesel engine, or steam turbine driven. Designed for flow rates typically beyond the range of ANSI end suction pumps. Making it a very cost competitive alternative to axial split case pumps.

Hydraulic performance for the ETA extends to 9,500 GPM and 440 feet of head. This range is covered by thirteen sizes in cast iron and bronze-fitted iron as the standard.

All ETA’s feature high efficiency enclosed impellers and replaceable wear rings as standard.

All together, these features and options combine to make the ETA a pump of exceptional value, combining affordability with some of the most efficient hydraulics found for a pump of this type.

Hydraulics

Flows To

9,500 GPM

2,158 m3/hr
Heads To

440 ft.

134m
Efficiencies To

88%

Power To

500 HP

375 KW
Speeds Up To

1,750 RPM

Temperatures To

250° F

120° C

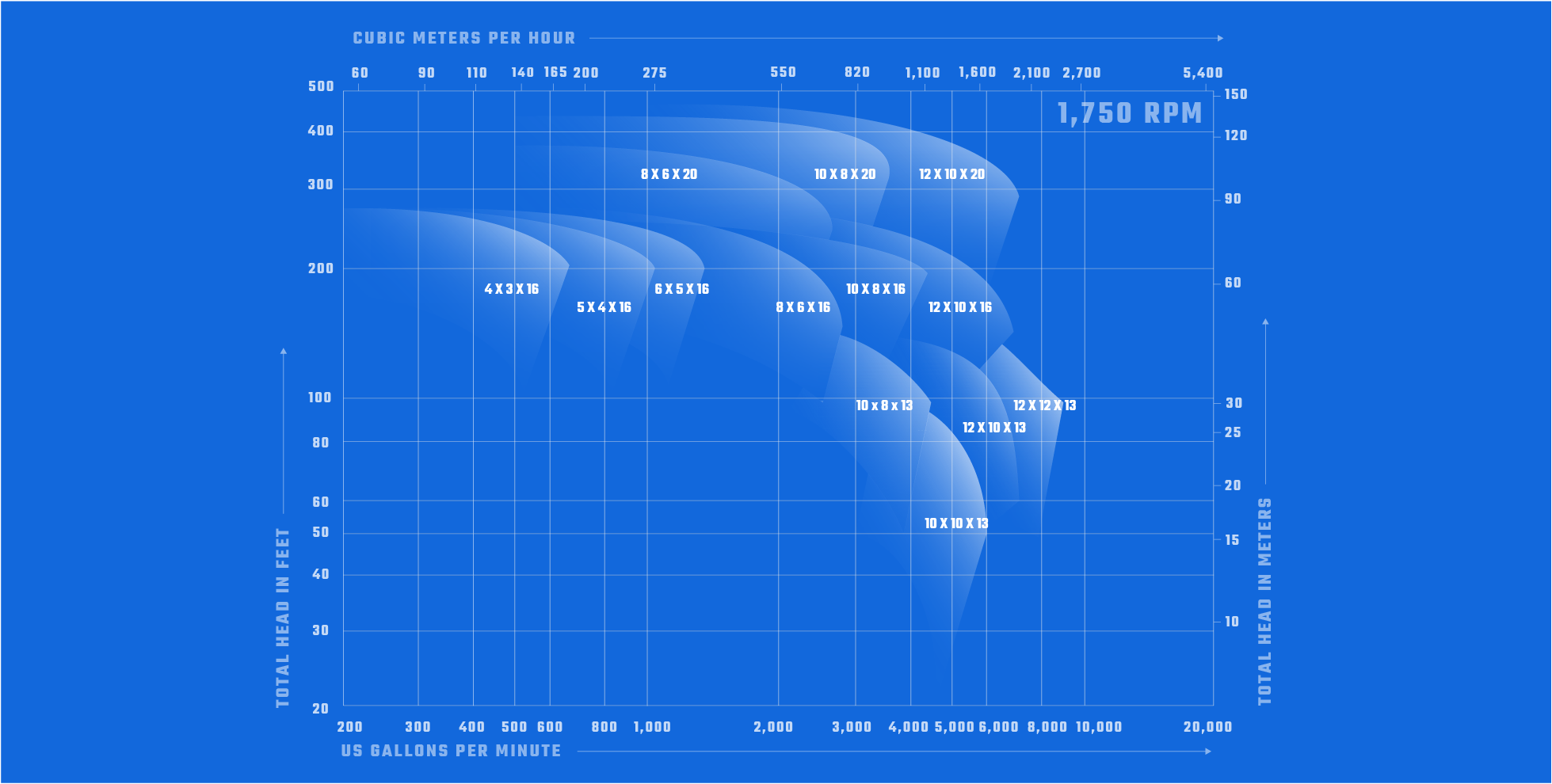

Hydraulic Coverage

Specifications

Materials of Construction

Design Data

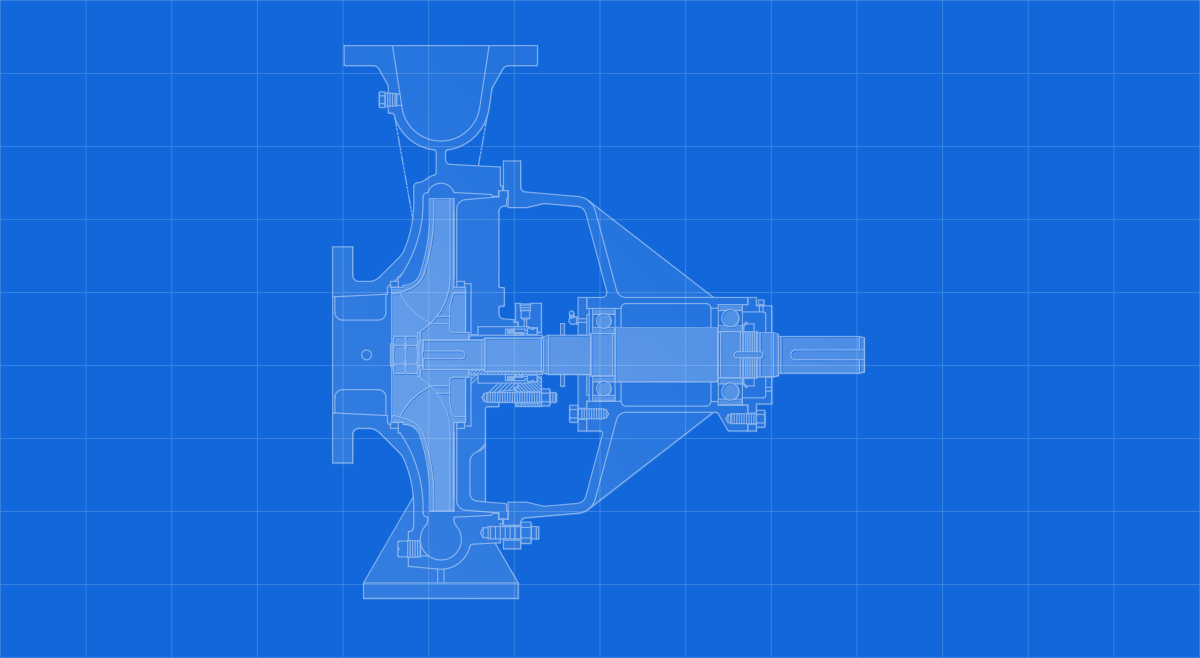

Features

Wear Rings

Renewable wear rings with all enclosed impellers.

1

Impellers

High efficiency design in cast iron or bronze.

2

Stuffing Box

Designed for mechanical seal or packing.

3

Bearing Frame

Heavy duty cast iron bearing frame.

4

Downloads

ETA Brochure

2006 (403 KB)

Technical Manuals

ETA Manual - IOM (2 MB) Download
ETA-L Series - IOM (3 MB) Download
ETA-L Series “C” Frame after 7/96 - IOM (2 MB) Download
ETA Series Techbook - (4 MB) Download
